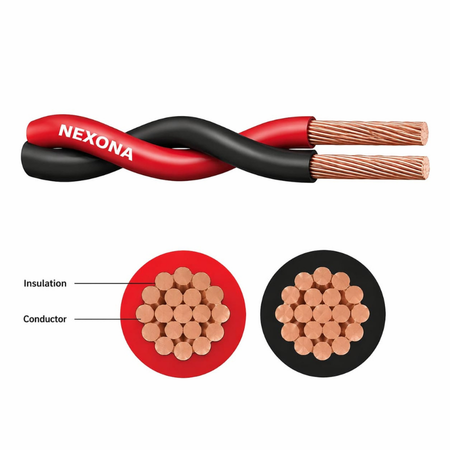

Twin Twisted Cables

Atula Cable Industries Premier grade domestic flexible wires featuring multiple cores of flexible copper conductors, insulated and overall sheathed with high-quality PVC. Accurately contrived for superior durability, these wires are the industry choice for efficient interconnection and internal device wiring.

Verified parameters according to Indian Standard protocols.

Sizes Available	10x40, 14x40, 23x40, 30x40, 40x40, 70x40
Applications	PCB, Computer, Motor Leads, Automotive
Construction	Flexible Copper Conductor
Insulation	Overall Sheathed PVC
Utility	Data Processing & Internal Wiring
Quality	Superior Flex & Durability
Standards Followed	IS 8130:2013, IS 5831:1984, IEC 60332-1-2
Voltage Rating	1100 V
Operating Temperature	-15°C to 70°C
Bending Radius	Fixed installation: 6 × overall diameter; Occasional: 4 × overall diameter
Conductor Resistance	As per IS 8130
Insulation Resistance	As per IS 5831:1984
Flammability Test	As per IEC 60332-1-2

Multi-Core Copper Flexibility
High-Grade PVC Sheathing
PCB & Circuit Optimized
Inter-Connection Reliable
Pocket-Friendly Rates
Telecom System Ready
