Twin Aluminium Flat Cable

Atula Cable Industries Twin Aluminium Flat Cable is electrical cables that have two parallel conductors made of aluminum wires, which are typically flat in shape. The conductors are separated by a thin layer of insulation, which helps to prevent any electrical interference or short circuits between the conductors. Our products are ideally used for low voltage applications, such as in building wiring for lighting and power and also used in automotive and marine applications, and for connecting electrical appliances and equipment. We ensure the Twin Aluminium Flat Cable makes them lighter and less expensive than equivalent copper cables.

Colors:

Verified parameters according to Indian Standard protocols.

Certification ISI, NSIC, ISO, TAC, UKAS, FIA
Conductor Material Aluminium
Insulation Material PVC Insulated
Nominal Area 2.50 to 10 Sq.mm
Color Yellow
Voltage Rating 10 A
Nominal Voltage 1100 V
Cable Length 90m
Water Resistant Yes
Application Home Building, Indoor & Outdoor, Domestic Industrial
Type Flat Aluminium Cable
Country of Origin India
  • Aluminium Conductor
  • PVC Insulated
  • 10 Sq.mm Nominal Area
  • Water Resistant
  • ISI & ISO Certified
  • Suitable for Home & Industrial Use

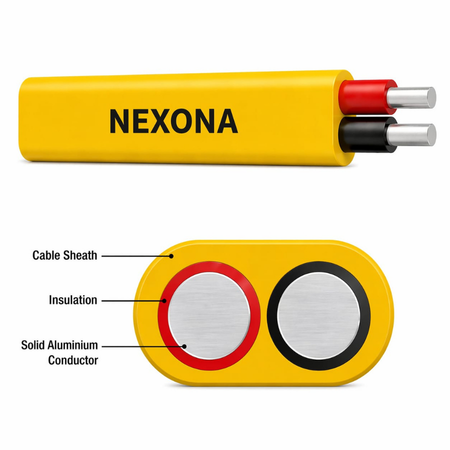

PVC insulated and sheathed twin flat aluminium cable up to 1100V, conforming to IS 694:1990.

Nominal Area (Sq.mm) Conductor Construction (No./mm) Insulation Thickness (mm) Core Dia (mm) Sheath Thickness (mm) Height (mm) Width (mm) Current Rating (Amps) Max D/C Resistance (Ohm/Km)
2.50 1/1.78 0.7 3.3 1.0 6.40 10.00 18 12.1
4.00 1/2.25 0.8 3.8 1.0 7.20 11.50 23 7.41
6.00 1/2.76 0.8 4.5 1.1 8.00 13.00 30 4.61
10.00 1/3.57 1.0 5.5 1.2 9.60 16.00 40 3.08
