Speaker Wire

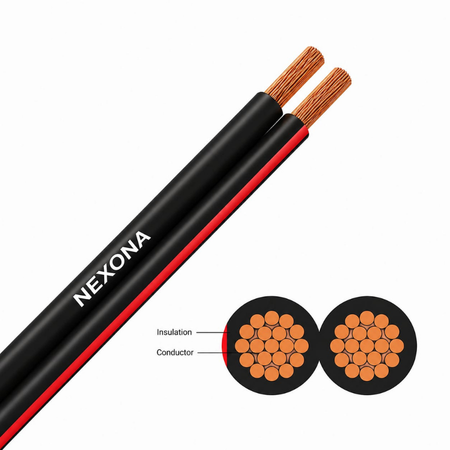

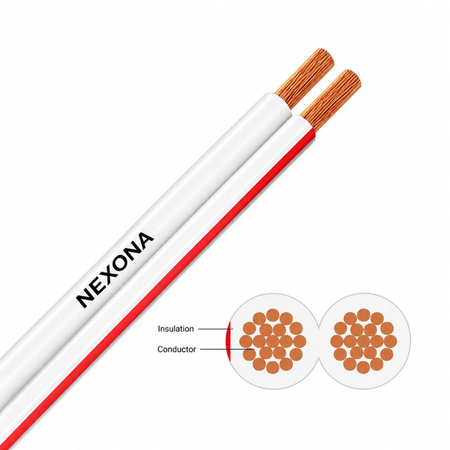

Atula Cable Industries Speaker wire is used to make the electrical connection between loudspeakers and audio amplifiers. Modern speaker wire consists of two electrical conductors individually insulated by PVC The two wires are electrically identical, but are marked to identify the correct audio signal polarity. Most commonly, speaker wire comes in the form of zip cord.

OXYGEN FREE COPPER SPEAKER WIRE use 14 Gauge AWG oxygen free copper conductors to build excellent signal transmission, Speaker Wire Cable that’s build with high stranded conductors provides premium sound quality with for home theater and car audio system, It is perfect for achieving outstanding audio performance, exceptional flexibility, easy stripping and great polarity identification.

Nominal Area	Equivalent AWG	Cross Sectional Area (Sq. mm)	Max. DC Resistance at 20°C (Ω/km)	Max Dimensions (W x H mm)
0.50	22	0.5	39.0	4.2 x 2.1
1.0	18	1.0	19.5	5.7 x 2.9
1.5	16	1.5	13.3	6.0 x 3.0
2.5	14	2.5	8.0	7.0 x 3.6

Lower resistance ensures better audio performance.
High bass signal transmission
Noise free signal transmission
Extremely durable
Oxygen-free stranded copper conductor to IS 8130, class 5 or class 6
Insulated with Transparent PVC
Voltage Rating 1100 V
Operation Temperature Max.: 70°C
Available in Black & White
Durable Weatherproof Jacket

Wire Size	2 Ω Load	4 Ω Load	6 Ω Load	8 Ω Load
22 AWG (0.326 mm²)	3 ft (0.9 m)	6 ft (1.8 m)	9 ft (2.7 m)	12 ft (3.6 m)
20 AWG (0.518 mm²)	5 ft (1.5 m)	10 ft (3 m)	15 ft (4.5 m)	20 ft (6 m)
18 AWG (0.823 mm²)	8 ft (2.4 m)	16 ft (4.9 m)	24 ft (7.3 m)	32 ft (9.7 m)
16 AWG (1.31 mm²)	12 ft (3.6 m)	24 ft (7.3 m)	36 ft (11 m)	48 ft (15 m)
14 AWG (2.08 mm²)	20 ft (6.1 m)	40 ft (12 m)	60 ft (18 m)*	80 ft (24 m)*
12 AWG (3.31 mm²)	30 ft (9.1 m)	60 ft (18 m)*	90 ft (27 m)*	120 ft (36 m)*
10 AWG (5.26 mm²)	50 ft (15 m)	100 ft (30 m)*	150 ft (46 m)*	200 ft (61 m)*
