Multi-Core Industrial Cables

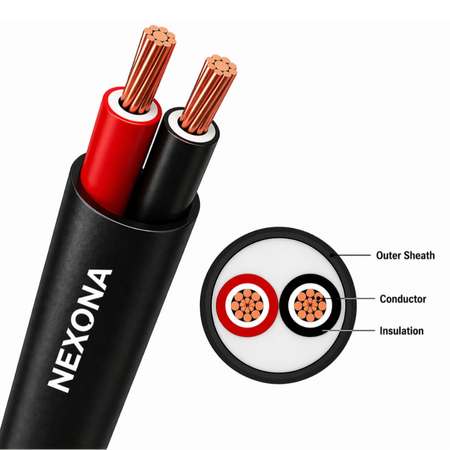

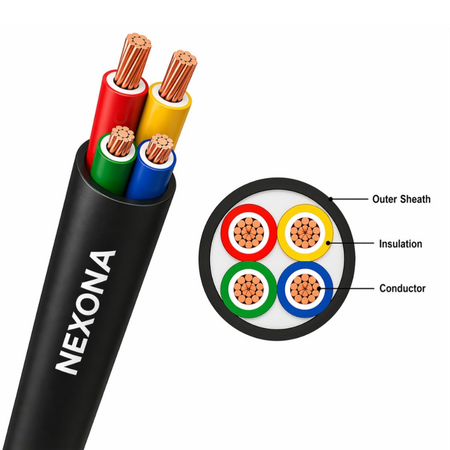

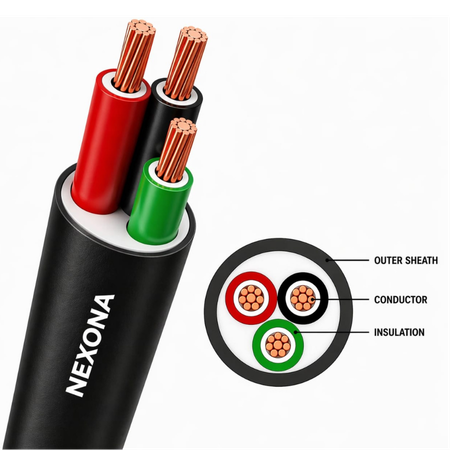

Atula Cable Industries Multi-Core Industrial Cables are made from bright-annealed 99.97% pure bare copper wires with low conductor resistance. They are available in 2-core, 3-core and 4-core variants. The sheath is coated with a specially formulated PVC mixture to not only make stripping easier, but also to withstand all types of mechanical abrasion during use.

The conductors are made of electrolytic grade copper that has been annealed and bunched together as per class 5 of IS 8130 : 2013. Multicore Felixble copper Cable are manufactured as per IS 694 : 2010 standards and are available from 0.50 Sq. mm to 95 Sq. mm

Verified parameters according to Indian Standard protocols.

Specification	Details
Certification	IS 694, IEC 60228
Voltage Rating	650V - 1100V
Core Options	2 to 12 custom cores
Cable Length	Up to 1000 meters
Temperature Range	-20°C to +80°C
Popular Sizes	0.50 sq.mm to 95 sq.mm
Core Variants	2 to 12 Core
Conductor Type	Bright Electrolytic Copper
Insulation	PVC, Oil & Acid Resistant
Resistance	Uniform / Standardized

Bright Electrolytic Copper
Uniform Resistance & Flex
High Dielectric Grade PVC
Strengthened Core Huddling
Industrial Application Ready
High Tensile Strength

PVC insulated bare copper conductor 600V / 1000V sheathed multicore flexible cables

Technical Specifications (0.5 – 95 sq.mm)

Nominal Area	Insulation Thickness	Core Dia	Max DC Resistance	Sheath Thickness			Overall Diameter			Current Rating (Amps)
Nominal Area	Insulation Thickness	Core Dia	Max DC Resistance	2C	3C	4C	2C	3C	4C	2C	3C	4C
0.5	0.6	2.2	39	0.9	0.9	0.9	6.08	6.41	6.96	4	3	3
0.75	0.6	2.4	26	0.9	0.9	0.9	6.44	6.8	7.39	7	6	6
1	0.6	2.6	19.5	0.9	0.9	0.9	6.78	7.17	7.8	12	10	10
1.5	0.6	2.8	13.3	0.9	0.9	1	7.22	7.65	8.34	16	14	14
2.5	0.7	3.5	7.98	1	1	1	8.64	9.16	10.01	20	18	18
4	0.8	4.3	4.95	1	1	1	10.08	10.94	11.98	27	24	24
6	0.8	4.8	3.3	1.1	1.2	1.2	11.36	12.28	13.46	34	30	30
10	1	6.3	1.91	1.3	1.4	1.4	14.5	15.66	17.28	44	39	39
16	1	7.3	1.21	1.4	1.4	1.4	16.94	18.06	19.88	61	55	55
25	1.2	9.1	0.78	1.4	1.5	1.6	20.48	22.1	24.58	69	60	60
35	1.2	10.1	0.554	1.6	1.6	1.7	22.7	24.85	26.98	88	77	77
50	1.4	11.9	0.386	2	2	2	27.04	28.89	31.86	116	102	102
70	1.4	13.9	0.272	2.2	2.2	2.2	31.48	33.65	37.15	155	140	140
95	1.6	16.3	0.206	2.4	2.4	2.4	35.94	38.43	42.45	190	165	165

Colors:
