Verified parameters according to Indian Standard protocols.
| Specification |
Details |
| Certification |
IS 694 Certified |
| Conductor |
100% Pure Electrolytic Copper |
| Insulation |
Fire Resistant (FR) PVC, 90°C rated |
| Voltage Range |
600V - 1100V |
| Temperature Range |
-30°C to +90°C |
| Standards |
IS 694, IEC 60228 Certified |
| Flame Retardant |
FRLS Certified |
| Fire Resistance |
IEC 60332-1 Compliant |
| Nominal Sizes |
0.50 sq.mm to 70 sq.mm |
| Color Options |
Red, Black, White, Blue, Yellow, Green |
| Core Insulation |
Fire Resistant (FR) PVC |
| Conductor Type |
Multi-strand Bright Annealed Copper |
| Standard Length |
90m (Attractive Gift Box) |
| Project Packing |
180m / 270m Jumbo Packs |
| 1.0 sq.mm Capacity |
14/0.3, 11–12 Amps |
| 4.0 sq.mm Capacity |
56/0.3, 24–29 Amps |
- Fire Resistant (FR) Properties
- High Oxygen & Temp Index
- 99.9% Pure Electrolytic Copper
- Safe operation in standard domestic condition
- Available in 6 Vibrant Colors
- Anti-Rodent & Termite Proof
- Specially Formulated Insulation
- ROHS Compliant

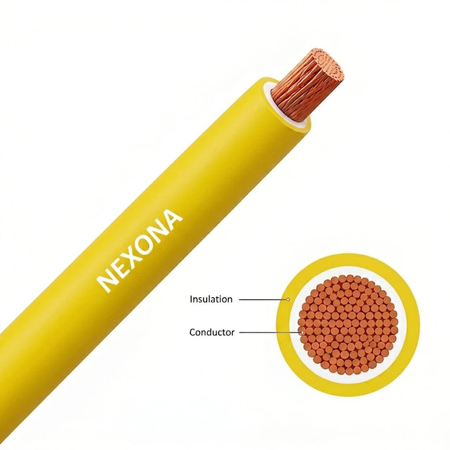

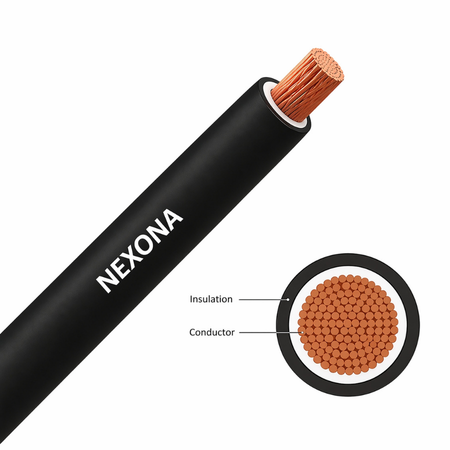

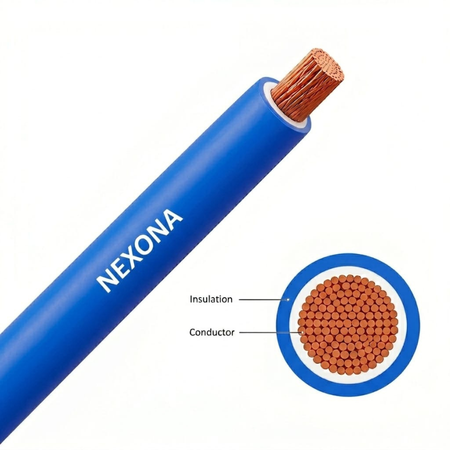

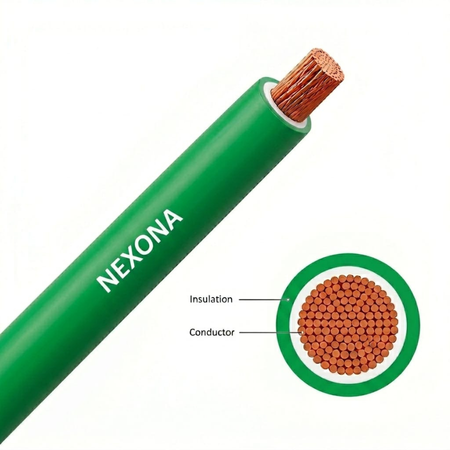

Single core PVC insulated bare copper conductor unsheathed 1.1 KV cable wire
Technical Specifications Table
| Nominal Area (Sq. mm.) |
Insulation Thickness (mm) |
Outer Diameter (Approx) |
Current Rating (Amps) |
Max. DC Resistance (Ohm/Km at 20°C) |
| 0.5 |
0.6 |
2.1 |
4 |
39 |
| 0.75 |
0.6 |
2.27 |
7 |
26 |
| 1 |
0.6 |
2.44 |
12 |
19.5 |
| 1.5 |
0.6 |
2.66 |
16 |
13.3 |
| 2.5 |
0.7 |
3.27 |
22 |
7.98 |
| 4 |
0.8 |
3.99 |
29 |
4.95 |
| 6 |
0.8 |
4.52 |
37 |
3.3 |
| 10 |
1 |
5.9 |
51 |
1.91 |
| 16 |
1 |
7 |
68 |
1.21 |
| 25 |
1.2 |
8.77 |
86 |
0.78 |
| 35 |
1.2 |
9.67 |
110 |
0.554 |
| 50 |
1.4 |
11.44 |
145 |
0.386 |
| 70 |
1.4 |
13.44 |
215 |
0.272 |
