Coaxial Cables

Atula Cable Industries Coaxial cables are designed to transmit high-frequency electrical signals with minimal interference, making them ideal for clear and stable signal transmission. These cables are widely used in both residential and commercial setups for TV, internet, and other data-related applications.

There are several types of coaxial cables available:

RG6: Commonly used for distributing Cable TV and Satellite TV signals.
RG11: Suitable for special applications or longer distance runs due to its lower signal loss.
RG59: Generally not recommended for modern TV or internet connections due to its limited performance.

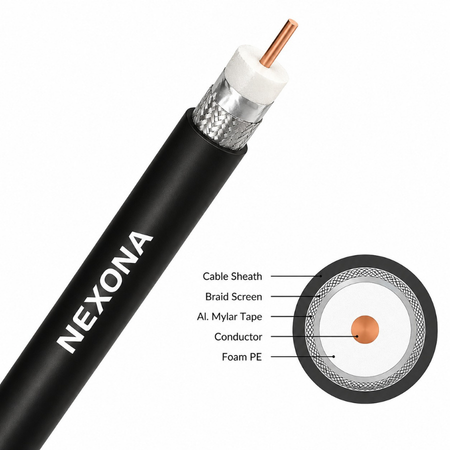

High-performance transmission cable featuring a center wire enclosed by premium isolation and a stranded armor of braided wire. This specialized shield minimizes electrical and radio frequency interference, making it the industry standard for television and data networks.

Parameter	RG 59 F	RG 6 F	RG 11 F
Inner Conductor	Copper	Copper	Copper
Nominal Diameter (mm)	0.8	1.02	1.63
Dielectric	Foam PE	Foam PE	Foam PE
Nominal Diameter (mm)	3.5	4.5	7.0
Outer Conductor - First	Bonded Al Tape	Bonded Al Tape	Bonded Al Tape
Outer Conductor - Second	Tinned Cu/Al Braid	Tinned Cu/Al Braid	Tinned Cu/Al Braid
Nominal Coverage (%)	60	60	60
PVC Jacket	Black	Black	Black
Nominal Cable Diameter (mm)	6.2	7.0	10

RF Interference Shielding
High Data Transmission Rate
Minimum loss in signal quality
Low attenuation value
Stranded Braided Armor
Available in Black & White
75 Ohms Characteristic Impedance
Durable Weatherproof Jacket
Operation Temperature Max.: 70°C
RG-59 F / RG-6 F / RG-11 F: Solid bare copper, RG-6 CCS / RG-11 CCS: Solid copper clad steel
Insulated with foam HDPE (High Density Polyethylene)
Primary shield by bonded aluminium foil
Secondary shield by aluminium alloy wire
Flooded with jelly
Sheathed with flame retardant PVC in black colour

There are several types of coaxial cables available:
