CAT 6A SF/UTP Cable

Atula Cables Industries As a trusted Ethernet LAN cable manufacturer,offer enhanced headroom beyond TIA-568-C.2 and ISO/IEC 11801 Category cat 6A standards, ensuring reliable transmission with reduced crosstalk and consistent performance. Available in UTP variants, each built with solid bare copper conductors (24 AWG), quality insulation and selectable PVC, LSZH, or PE sheathing.

CAT 6A - Category 6A network cable is a type of twisted pair cable used in Ethernet and other network standards. CAT 6A cables are ideal for high-speed network setups. CAT 6A cables support data transfer speeds of up to 1 Gbps (Gigabit per second) at 250 MHz. Explore our product CAT 6A network copper cables for businesses, IT professionals, and consumers who want to enhance their network's speed, reliability, & future-readiness.

Atula Cables Industries offers premium Cat 6A cables designed for high-speed data, voice and video transmission across LAN networks. As a leading Ethernet cable manufacturer, our Cat 6A solutions provide superior performance with extra headroom, ensuring reliable connectivity for demanding applications.

Atula Cables Industries As a trusted Cat 6A cable manufacturer, LAN cable manufacturer and networking cables manufacturer, we deliver enhanced bandwidth, reduced interference and long-lasting durability.

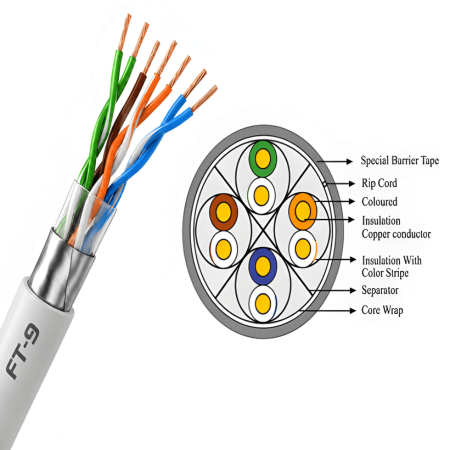

Conductor	24 AWG Solid Bare Copper
Central Separator	PE Cross Separator
Insulation	High Density Polyethylene
Solid Pairs	4 Pairs Twisted together
Cable Diameter	7.5 ± 1 mm
Shielding	Al Mylar
Braiding	ATC Braiding
Rip cord	Nylon Rip cord
Outer Jacket	FR-PVC sheath Grey
Bending Radius	<8 x OD at -20°C
Pulling Force	25 lbs
Installation Temperature	(0°C to +50°C)

Conductor Resistance	9.2 â„¦/100 Mtr max
Mutual Capacitance	5.6 nF for 100 Mtr
Resistance Unbalance (%)	max 5
Capacitance Unbalance	330 pF for 100 Mtr
Delay Skew	48 ns/100 Mtr
Propagation Delay	< 542 ns/100 Mtr
NVP	69%
Current Rating	max 1.5 A
Operating Voltage	72 V

For Data Center Applications
High bandwidth @ 500 MHz
4 Pair 24 AWG
FR-PVC jacket
High speed transmission of Voice, Video and Data on LAN
Complies to ANSI/TIA 568-C.2 Cat 6A, ISO/IEC 11801 EA

Pair Number	Colour
1 – 2	White-Orange Strip and Orange
3 – 6	White-Green Strip and Green
4 – 5	White-Blue Strip and Blue
7 – 8	White-Brown Strip and Brown

FREQUENCY IN MHz	ATTENUATION (dB)	NEXT (dB)	PSNEXT (dB)	ELFEXT (dB)	PSELFEXT (dB)	RETURN LOSS (dB)
1	2.03	74.30	72.30	67.80	64.80	20.0
10	5.95	59.30	57.30	47.80	44.80	25.0
25	9.65	53.33	51.34	39.84	36.83	24.32
62.5	15.46	47.36	45.32	31.88	28.88	21.54
100	19.9	44.30	42.28	27.8	24.76	20.11
250	32.9	38.33	36.33	19.84	16.84	17.32
500	48.90	33.82	31.82	13.80	10.82	15.21

Colors:
