CAT 6 UTP Cable

Atula Cables Industries As a trusted Ethernet LAN cable manufacturer,offer enhanced headroom beyond TIA-568-C.2 and ISO/IEC 11801 Category cat 6 standards, ensuring reliable transmission with reduced crosstalk and consistent performance. Available in UTP variants, each built with solid bare copper conductors (24 AWG), quality insulation and selectable PVC, LSZH, or PE sheathing.

CAT 6 – Category 6 network cable is a high-performance twisted pair cable used for Ethernet and other networking standards. Designed for modern high-speed network environments, CAT 6 cables support data transfer speeds of up to 1 Gbps (Gigabit per second) at frequencies up to 250 MHz. These cables are ideal for businesses, IT professionals and consumers seeking faster, more reliable and future-ready network infrastructure.

Atula Cables Industrys offers premium CAT 6 cables engineered for high-speed data, voice and video transmission across LAN networks. Our CAT 6 cable solutions are designed to deliver superior signal performance with enhanced bandwidth and reduced crosstalk, making them suitable for demanding networking applications.

As a trusted LAN cable and networking cable manufacturer, Atula Cables Industrys focuses on quality, durability and consistent performance. Our CAT 6 cables provide excellent connectivity, stable transmission and long service life, ensuring dependable networking solutions for commercial, industrial and residential environments.

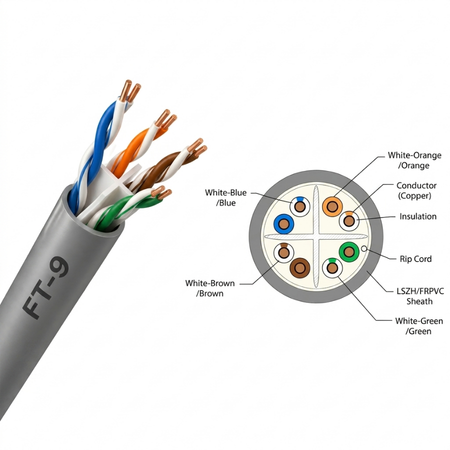

Conductor	24 AWG Solid Bare Copper
Central Separator	PE Cross Separator
Insulation	High Density Polyethylene
Solid Pairs	4 Pairs Twisted together
Cable Diameter	5.8 ± 0.5 mm
Rip Cord	Nylon Rip cord
Outer Jacket	FR-PVC
Jacket Colour	Light Grey (Customised colours on request)
Bending Radius	4 X OD at 20°C
Pulling Force	25 lbs
Operating Temperature	(-20°C to +60°C)
Installation Temperature	(0°C to +50°C)

Conductor Resistance	9.2 Ω/100 Mtr max
Mutual Capacitance	5.6 nF for 100 Mtr
Resistance Unbalance (%)	max 5
Capacitance Unbalance	330 pF for 100 Mtr
Delay Skew	< 45 ns/100 Mtr
Propagation Delay	< 538 ns/100 Mtr
NVP	69%
Current Rating	max 1.5 A
Operating Voltage	72 V
Dielectric Strength	1000 V RMS
Insulation Resistance	100 M Ω
Impedance	100 Ω @ 250 MHz

For Data Center Applications
High bandwidth @ 250 MHz
4 Pair 24 AWG
FR-PVC jacket
High speed transmission of Voice, Video and Data on LAN
Complies to ANSI/TIA-568-C.2, ISO/IEC 11801 Class E

Pair Number	Colour
1 – 2	White-Orange Stripe and Orange
3 – 6	White-Green Stripe and Green
4 – 5	White-Blue Stripe and Blue
7 – 8	White-Brown Stripe and Brown

Frequency (MHz)	ATT (dB @ 100m) max	NEXT (dB) min	PS NEXT (dB) min	ACRF (dB @ 100m) min	PS ACRF (dB @ 100m) min	Return Loss (dB @ 100m) min
1	2.1	65.0	62.0	63.3	60.3	19.0
4	4.0	63.0	60.5	51.2	48.2	19.0
8	5.7	58.2	55.6	45.2	42.2	19.0
10	6.3	56.6	54.0	43.3	40.3	19.0
16	8.0	53.2	50.6	39.2	36.2	18.0
20	9.0	51.6	49.0	37.2	34.2	17.5
25	10.1	50.0	47.3	35.3	32.3	17.0
31.25	11.4	48.4	45.7	33.4	30.4	16.5
62.5	16.5	43.4	40.6	27.3	24.3	14.0
100	21.3	39.9	37.1	23.3	20.3	12.0
200	31.5	34.8	31.9	17.2	14.2	9.0
250	32.8	33.1	30.2	15.3	12.3	8.0

Colors:
