CAT 6 Lift Traveling Cable

Atula Cables Industries As a trusted Ethernet LAN cable manufacturer,offer enhanced headroom beyond TIA-568-C.2 and ISO/IEC 11801 Category cat 6 standards, ensuring reliable transmission with reduced crosstalk and consistent performance. Available in UTP variants, each built with solid bare copper conductors (24 AWG), quality insulation and selectable PVC, LSZH, or PE sheathing.

CAT 6 - Category 6 network cable is a type of twisted pair cable used in Ethernet and other network standards. CAT 6 cables are ideal for high-speed network setups. CAT 6 cables support data transfer speeds of up to 1 Gbps (Gigabit per second) at 250 MHz. Explore our product CAT 6 network copper cables for businesses, IT professionals, and consumers who want to enhance their network's speed, reliability, & future-readiness.

Atula Cables Industries As a trusted Cat 6 cable manufacturer, LAN cable manufacturer and networking cables manufacturer, we deliver enhanced bandwidth, reduced interference and long-lasting durability.

Conductor	24 AWG Copper
Insulation	High Density Polyethylene
Solid Pairs	4 Pairs Twisted together
Rip cord	Nylon Rip cord
Outer Jacket	FR-PVC
Jacket Colour	Light Grey (Customised colours on request)
Bending Radius	4 X OD at 20°C
Pulling Force	25 lbs
Operating Temperature	(-20°C to +60°C)
Installation Temperature	(0°C to +50°C)

Conductor Resistance	9.2 Ω/100 Mtr max
Mutual Capacitance	5.6 nF for 100 Mtr
Resistance Unbalance (%)	max 5
Capacitance Unbalance	330 pF for 100 Mtr
Delay Skew	<45 ns/100 Mtr
Propagation Delay	< 538 ns/100 Mtr
NVP	69%
Current Rating	max 1.5 A
Operating Voltage	72 V
Dielectric Strength	1000 V RMS
Insulation Resistance	100 M Ω
Impedance	100 Ω @ 250 MHZ

Adhere to Cat 6 requirements (Elevator)

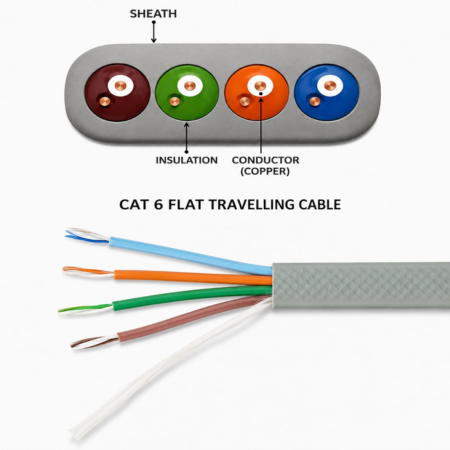

Flat traveling cable design for lift usage
An HDPE insulation
Super, Soft Jacket PVC material for 10 million bends.*
ETL EIA/TIA Standards Compliance verified
Packaged in a wooden reel for easier transportation.

Pair Number	Colour
1 – 2	White-Orange Strip and Orange
3 – 6	White-Green Strip and Green
4 – 5	White-Blue Strip and Blue
7 – 8	White-Brown Strip and Brown

FREQUENCY (MHz)	ATT (dB@100 m) max.	NEXT (dB) min.	PS.NEXT (dB) min.	ACRF (dB@100 m) min.	PS.ACRF (dB@100 m) min.	RETURN LOSS (dB@100 m) min.
1	2.1	65.0	62.0	63.3	60.3	19.0
4	4.0	63.0	60.5	51.2	48.2	19.0
8	5.7	58.2	55.6	45.2	42.2	19.0
10	6.3	56.6	54.0	43.3	40.3	19.0
16	8.0	53.2	50.6	39.2	36.2	18.0
20	9.0	51.6	49.0	37.2	34.2	17.5
25	10.1	50.0	47.3	35.3	32.3	17.0
31.25	11.4	48.4	45.7	33.4	30.4	16.5
62.5	16.5	43.4	40.6	27.3	24.3	14.0
100	21.3	39.9	37.1	23.3	20.3	12.0
200	31.5	34.8	31.9	17.2	14.2	9.0
250	32.8	33.1	30.2	15.3	12.3	8.0

Colors:
