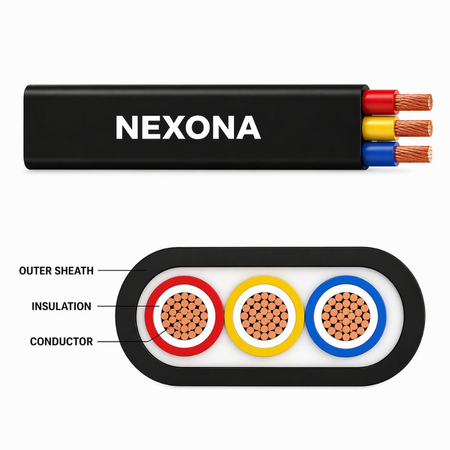

3 Core Flat Submersible Cables

Application

Atula Cable Industries PVC insulated and PVC sheathed 3 core flat cables are mainly used in motor and pump connections. They are also used in many industrial applications. The sheath is specially made out to resist tough and difficult outdoor conditions & has excellent resistant to water.

Features

Conductor

Thin strands of electrolytic copper having highest purity, least resistance are multi drawn for uniformity in dimension and plants, Sea water handling equipment’s, etc.

Verified parameters according to Indian Standard protocols.

Specification	Details
Certified Range	1.5 sq.mm to 35.0 sq.mm
Configuration	3 Core Flat / Round
Insulation	Butyl Rubber + PVC Sheath
Armor	Galvanized Steel Wire Armor
Operating Depth	Up to 100 meters
Corrosion Resistance	Anti-rust galvanized coating
Pressure Rating	High-pressure capable
Water Resistance	IP67 rated, fully submersible
Standards	IS 1554-1, IEC 60811
Compliance	As per B.I.S. (ISI Mark)
Conductor	Electrolytic Grade Copper

ISI Mark (BIS) Compliant
Optimistic Electrolytic Copper
High-Pressure Deep Well Technology
Maximum Flexibility & Uniformity
Water-Resistant PVC Sheath
Mine-Grade Sturdiness

Nominal Area (Sq.mm)	No. / Dia of Wires	Insulation Thickness (mm)	Sheath Thickness (mm)	Overall Dimension (W × T) (mm)	Max Resistance (Ohm/Km @20°C)	Current Capacity (Amp)
1.50	22/0.30	0.6	0.9	11.6 × 5.5	12.10	16
2.50	36/0.30	0.7	1.0	13.9 × 6.4	7.41	22
4.00	56/0.30	0.8	1.10	16.1 × 7.1	4.95	29
6.00	84/0.30	1.0	1.15	18.6 × 8.0	3.30	37
10.0	140/0.30	1.0	1.40	23.4 × 10.0	1.91	51
16.0	224/0.30	1.0	1.40	27.0 × 11.4	1.21	68
25.0	350/0.30	1.2	2.00	35.4 × 15.0	0.78	86
35.0	490/0.30	1.2	2.00	39.3 × 16.3	0.554	110
